ThomKatt TK50

More Horsepower for Shotcrete Work, Ideal For a Wide Variety of Concrete Placing

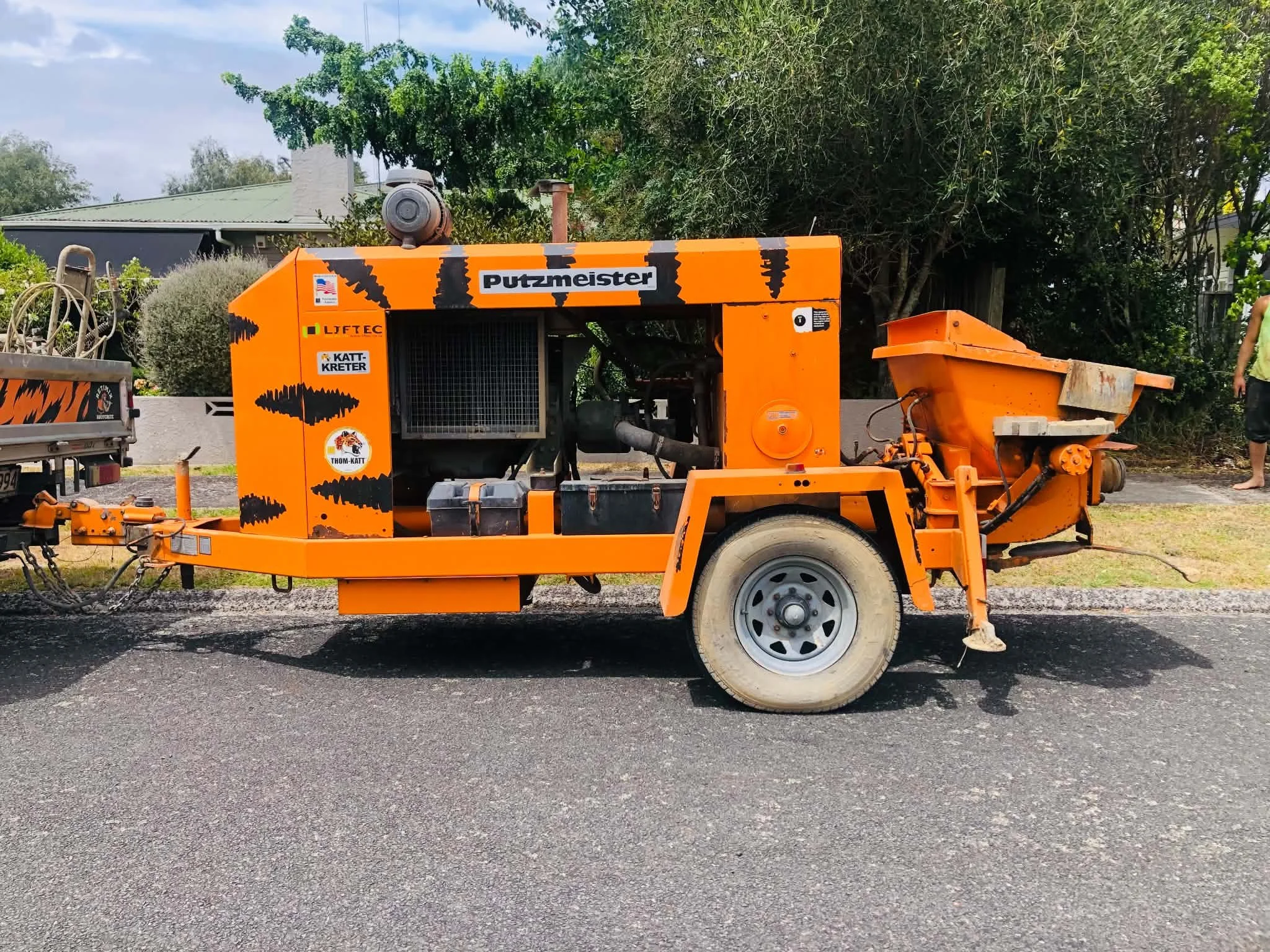

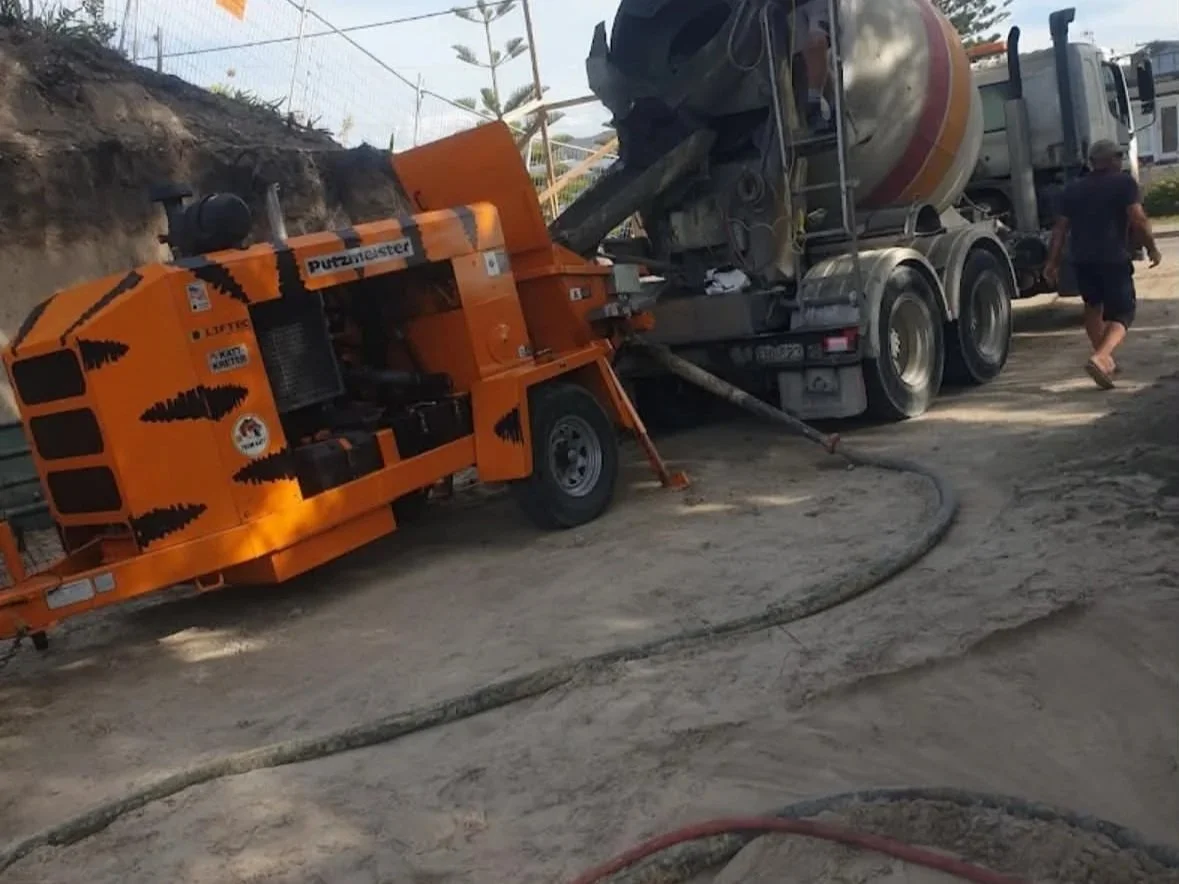

The Putzmeister Thom-Katt TK 50 Trailer Concrete/Shotcrete Pump gives more horse power for shotcrete work, and is ideal for a wide variety of concrete placing jobs and for pumping structural concrete. It features an angled hopper that’ s easier to fill and clean. The TK 50 can pump a variety of materials at up to 41m³/hr handle the harshest mixes, and tackle a variety of civil applications.

The Thom-Katt hydraulic S-Valve is ideal for pumping larger-aggregate materials. It lets you reverse the stroke to relieve pressure from plugs or when pumping difficult low-slump or fiber mixes. The material cylinders and variable, smooth hydraulics allow precise control at low output for specialized applications. You can maintain substantial output pressure when reducing to smaller-diameter conveying lines.

  • Pump Type: Trailer concrete pump

  • Engine: Diesel-powered, typically with a 74 hp (55 kW) Deutz engine

  • Maximum Concrete Output: 40m³/hr

  • Maximum Concrete Pressure: 1,150 psi (7.9 MPa)

  • Maximum Aggregate Size: 38 mm

  • Pump Cylinder Diameter: 152 mm

  • Pump Cylinder Stroke Length: 991 mm

  • Hydraulic System Pressure: 3,625 psi (25 MPa)

  • Hopper Capacity: 283 liters

  • Outlet Diameter: 127 mm

  • Weight: Approximately: 3,221 kg

  • Dimensions:

    • Length: 5,080 mm

    • Width: 2,032 mm

    • Height: 2,184 mm
